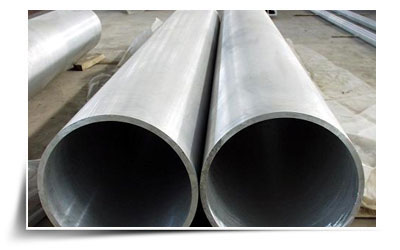

Incoloy Pipe

Trident Enterprises are among the pre-eminent organizations, involved in manufacturers, suppliers, stockists and exporter Incoloy Pipe. Available in different lengths, thicknesses and sizes, these Incoloy Pipe are widely demanded by various industries like food & beverage, chemical, petrochemical, pharmaceutical and cosmetics. In addition to this, we provide tailor-made solution for all our offered Incoloy Pipe as per customers’ requirements. The environment management system of the company is certified according to the requirements of ISO 9001:2008, 14001, 18001/ & PED. Few of the major brands we represent are Arcelor Mittal, Sumitomo, Tenaris, Benteler, Jazeera Steel, Hyundai HYSCO, Arabian Pipes Company, Sandvik, Froch, etc. Our materials are approved by Saudi ARAMCO, SABIC, SHELL, ADNOC, GASCO, PDO, KNPC, KOC, QATAR Gas, SGC etc.



What is Incoloy?

Incoloy refers to a range of superalloys produced by the Special Metals Corporation group of companies. They are mostly nickel-based, and designed for excellent corrosion resistance as well as strength at high temperatures; there are specific alloys for resistance to particular chemical attacks (e.g. alloy 020 is designed to be resistant to sulphuric acid, DS to be used in heat-treating furnaces with reactive atmospheres and many heat cycles).Incoloy MA956 is made by a mechanical alloying rather than a bulk-melting process; it was studied for space reactor components in the JIMO project. It is difficult to weld and needs to be heated to 200C for cold-forming processes.

Specification

Type Seamless Pipe, Welded Pipe
Trade Name Inconel 600 N06600, Inconel 625 N06625, Incoloy 800 N08800, Incoloy 800H N08810, Incoloy 800HT N08811
Standard ASTM A, ASME SA B161 , B725 , B163 , B730 , B167 , B517 , B751 , B516 , B775 , B444, B705, B704 , B407, B154, B515 , B423
Grade UNS N04400, UNS N06600, UNS N06625, UNS N08020, UNS N08800, UNS N08810 -UNS N08811, UNS N08825, UNS N10276, UNS S31254
UNSPSC Code N06600, N06625
Diameter less than 325mm (12.80”)
Test Certificates Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report



Chemical Composition

Incoloy Incoloy 800 Incoloy 800H
Element Min Max Min Max
Nickel + Cobalt 30.0 35.0 30.0 35.0
Cobalt --- 2.00 --- 2.00
Chromium 19.0 23.0 19.0 23.0
Copper --- 0.75 --- 0.75
Iron Bal Bal
Silicon --- 1.00 --- 1.00
Manganese --- 1.50 --- 1.50
Carbon --- 0.10 0.05 0.10
Aluminum 0.15 0.60 0.15 0.60
Titanium 0.15 0.60 0.15 0.60
Sulfur --- 0.015 --- 0.015



Physical Properties

  °F British Units °C Metric Units
Density Room 0.287 lb./in.(3) Room 7.95 g/cm(3)
Electrical
Resistivity
70
200
400
600
800
38.9 microhm-in.
40.6 microhm-in.
43.0 microhm-in.
44.7 microhm-in.
46.1 microhm-in.
21
93
204
316
427
0.989 microhm-m
1.03 microhm-m
1.09 microhm-m
1.13 microhm-m
1.17 microhm-m
Mean Coefficient
of Thermal
Expansion
70-200
70-400
70-600
70-800
7.9 microin./in.-°F
8.8 microin./in.-°F
9.0 microin./in.-°F
9.2 microin./in.-°F
21-93
21-204
21-316
21-427
14.2 X 10(-6)m/m-K
15.8 X 10(-6)m/m-K
16.2 X 10(-6)m/m-K
16.6 X 10(-6)m/m-K
Thermal
Conductivity
70
200
400
600
800
80 Btu-in/ft²-hr-°F
89 Btu-in/ft²-hr-°F
103 Btu-in/ft²-hr-°F
115 Btu-in/ft²-hr-°F
127 Btu-in/ft²-hr-°F
21
93
204
316
427
11.5 W/m-K
12.8 W/m-K
14.8 W/m-K
16.6 W/m-K
18.3 W/m-K
Dynamic Modulus
of Elasticity
Room 28.5 x 10(6) psi Room 196 GPa



Mechanical Properties

Alloy Form Condition Ultimate
Tensile
Strength,
ksi (MPa)
Yield
Strength
at 0.2%
offset,
ksi (MPa)
Elongation
in 2"
or 4D, percent
800 Sheet, Plate Annealed 85 (586) 40 (276) 43
800 Sheet, Plate
Strip, Bar
Annealed 75 (520)* 30 (205)* 30*
800H Sheet, Plate SHT 80 (552) 35 (241) 47
800H Sheet, Plate
Strip, Bar
SHT 65 (450)* 25 (170)* 30*
